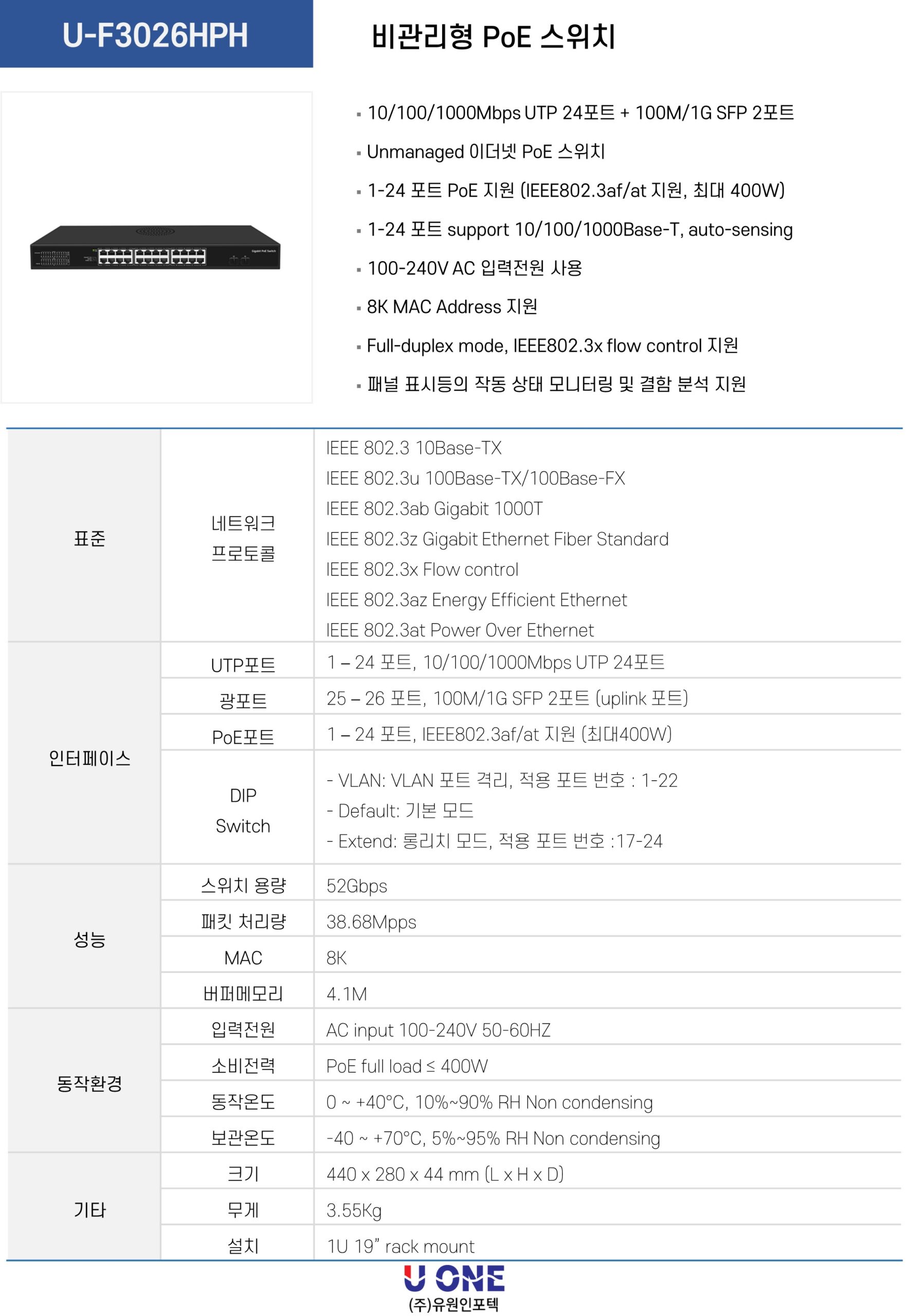

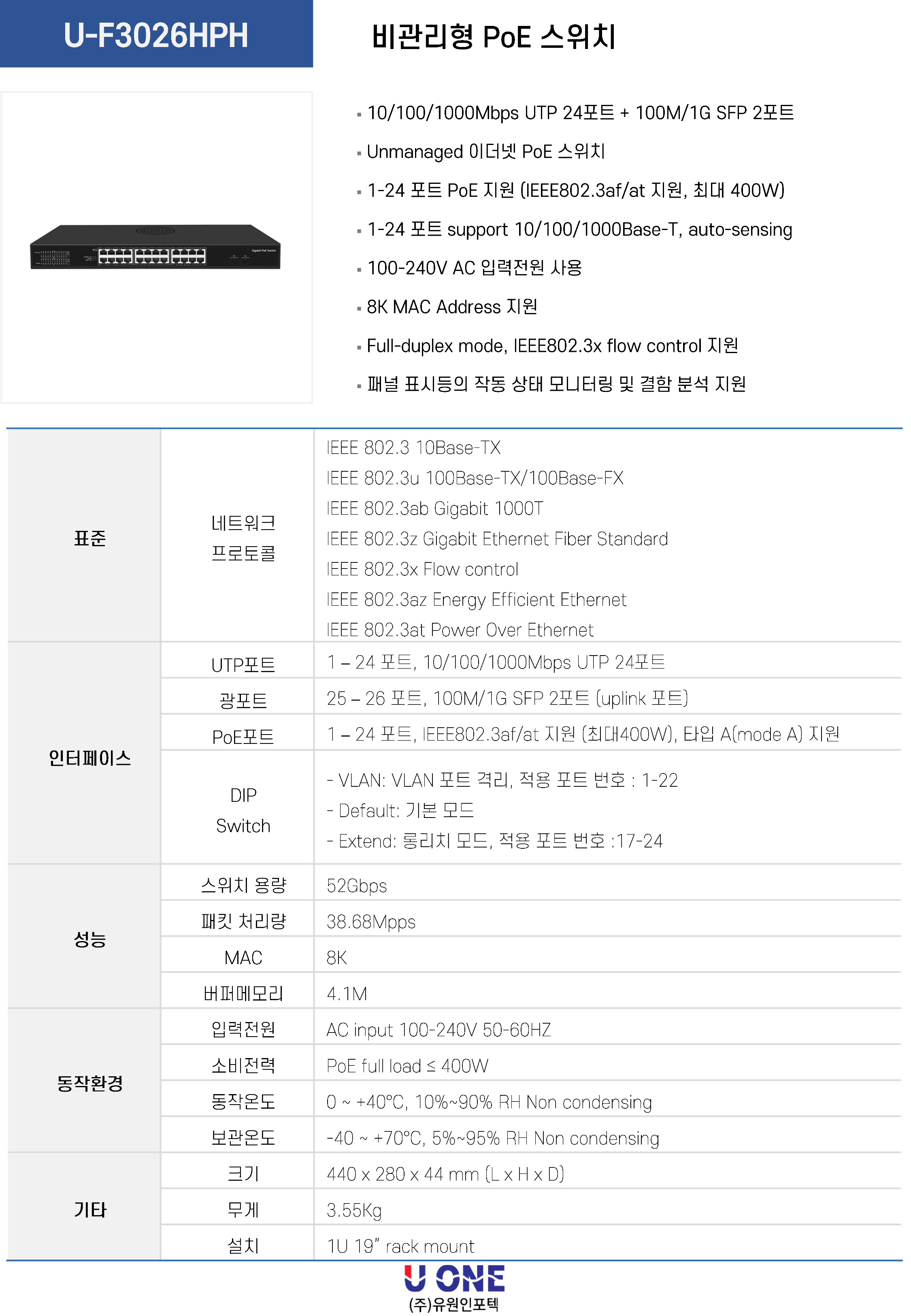

| 고정포트 | 24 * 10/100/1000Base-T PoE ports (Power/Data), 2 * 1G SFP uplink ports (Data), AC input : 100~240V 50~60Hz |
| 이더넷 포트 | Port 1-24 support 10/100/1000Base-T, auto-sensing, Full/half duplex MDI/MDI-X self-adaption VLAN : Isolation mode, 1-22 ports isolated from each other, communication with 23-26 ports Default : Normal mode, all interfaces can communicate with each other, transmission Extend : Link extension mode, 17-24 ports forced 10M, link 250meter (with PoE watchdog enabled) Long reach is supported when using CAT6 cable |
| 트위스트 프로토콜 | 10BASE-T : Cat3, 4, 5 UTP(≤100 meter), 100BASE-TX : Cat5 or later UTP(≤100 meter) 1000BASE-T : Cat5e or later UTP(≤100 meter) |
| POE 포트 | Port 1 to port 24 |
| PoE Management | PoE working status, Delay start of power supply, PoE output priority configuration Scheduling of PoE operation and time, Total power limit of PoE power supply PoE output power allocation, off& af & at |
| 스위치 용량 | 52Gbps |
| 버퍼 메모리 | 4.1M |
| 쓰루풋 | 36.68Mpps |
| MAC | 8K |
| 입력전압 | AC input : 100~240V 50~60Hz |
| 소비전력 | POE full load <400W |
| Operation TEMP / Humidity | 0 ~ +40°C, 10%~90% RH Non condensing |
| Storage TEMP / Humidity | -40 ~ +70°C, 5%~95% RH Non condensing |
| 치수 ( L x H x D mm) | 440x280x44 mm |
| 설치 | 1U 19 inch rack mount |
